Description

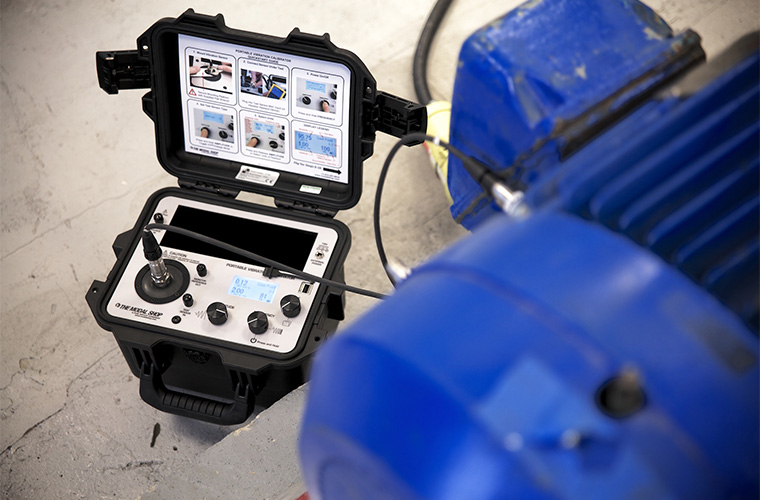

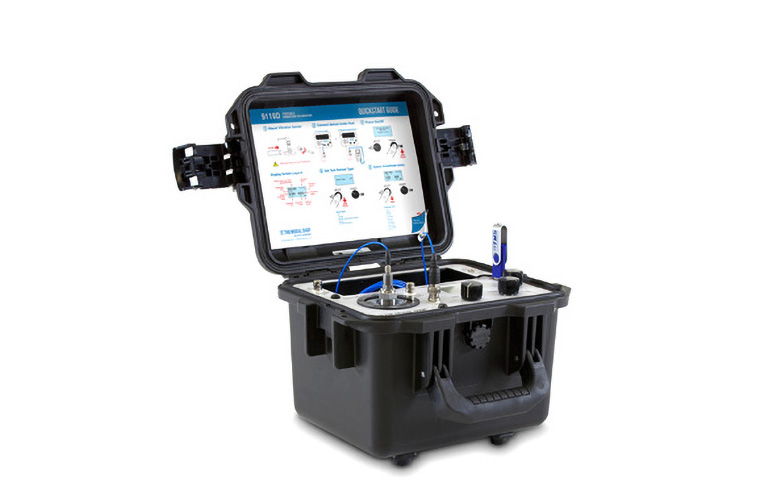

The 9110D Portable Vibration Calibrator is the ideal tool for checking accelerometers, velocity transducers, and proximity probes over a wide operating frequency and amplitude range. The unit is a compact, battery-powered, and completely self-contained vibration reference source, which can be conveniently used to calibrate individual sensors, vibration switches, and data collectors, as well as to validate the entire measurement channel of a condition monitoring or recording system. An integral precision quartz reference accelerometer and closed-loop level control gives the 9110D enhanced stability and superior vibration calibration over an extended 5 Hz to 10 kHz frequency range. Packaged in a rugged Pelican® Storm case, the 9110D is always ready for travel to test sites, bringing laboratory accuracy to the field.
Simple and elegant usability
- English or metric units on LCD screen
- Lightweight at 18 lbs (8.2 kg) allowing for easy mobility
- Battery life up to 18 hours
Precision control and stability
- Integral ICP® quartz reference accelerometer
- State of the art digital electronics
Ideal for in-situ validation
- Ensure end-to-end functionality
- Confirm alarm trip points are set properly
Donwload : Datasheet
